Setup Node and Transactions

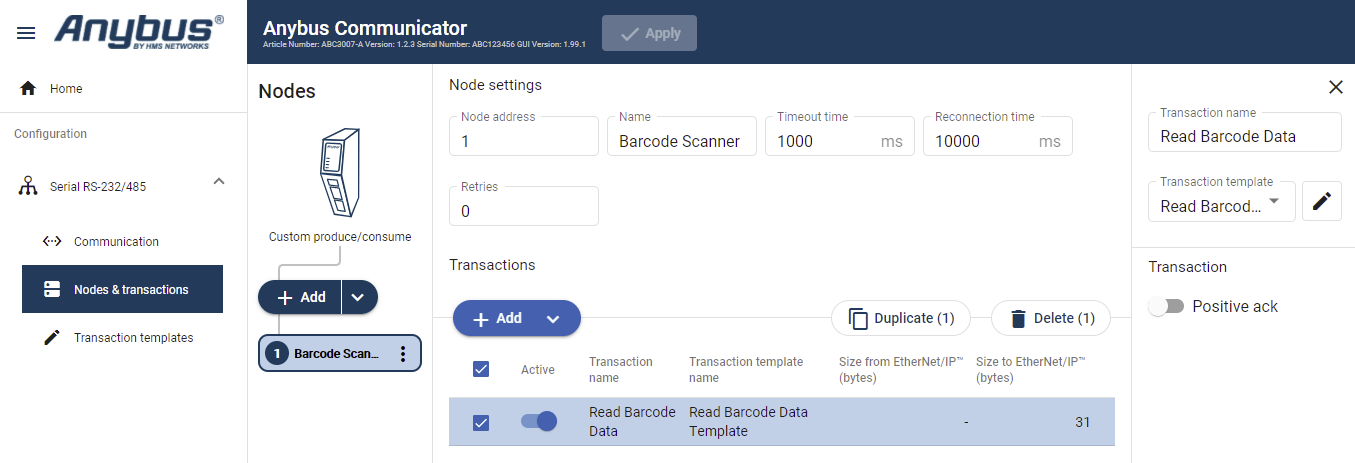

Figure 110. Node settings
 |
Add a node and select it.
In Node settings configure the node with the following settings:
Node settings
Value
Node address
The Barcode Scanner is set up as a node with Node address 1.
Name
Barcode Scanner
Timeout time
1000 ms (default)
Reconnecting time
1000 ms (default)
Retries
0 (default)
Add one transactions to the Barcode Scanner node and configure it with the following settings:
Table 15. The Barcode Scanner contains the following parametersTransaction name
Transaction template
Read Barcode Data
Read Barcode Data Template
