Check the I/O Data Map
The transactions from the Barcode Scanner is mapped as follows in the page.

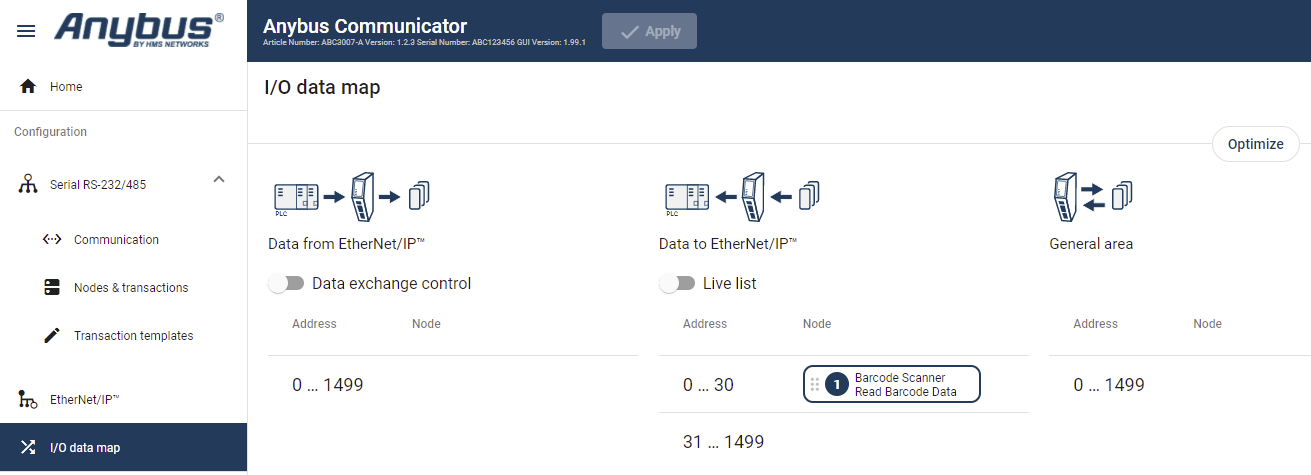

Figure 111. I/O data map
 |
Table 16. Status word and actual speed from My Drive to EtherNet/IP
Address | Barcode Scanner Parameter |
|---|---|
0-31 | The variable data, 31 bytes, are forwarded from the Barcode Scanner to the PLC. |
