Setup Node and Transactions

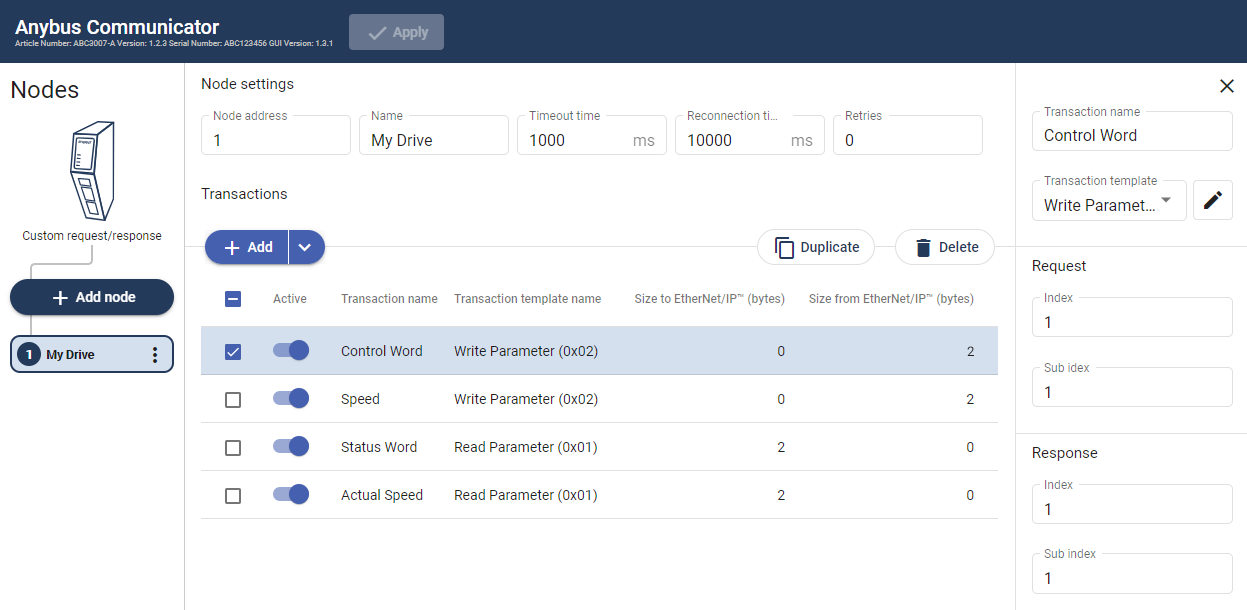

Figure 103. My Drive node with transactions
 |
Add a node and select it.
In Node settings configure the node with the following settings:
Node settings
Value
Node address
1
My Drive is set up as a node with Node address 1.
Name
My Drive
Timeout time
1000 ms (default)
Reconnecting time
1000 ms (default)
Retries
0 (default)
Add four transactions to the My Drive node and configure them with the following settings:
Table 10. My Drive contains the following parametersTransaction name
Transaction template
Index
Sub index
Control Word
Write Parameter (0x02)
1
1
Speed
Write Parameter (0x02)
1
2
Status Word
Read Parameter (0x01)
2
1
Actual Speed
Read Parameter (0x01)
2
2
