Event Log

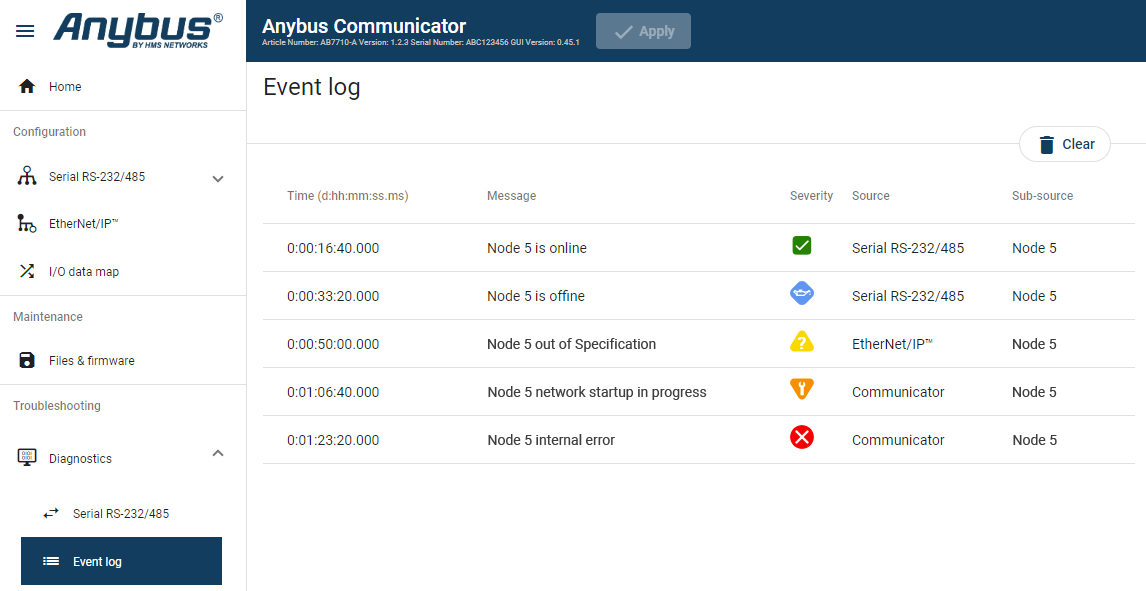

Figure 118. Event log page
 |
How To Analyze the Information
The log follows the FIFO principle, first in and first out. The oldest (first) value is processed first.
Time (d:hh:mm:ss.ms) | The date and time when the event occurred. | |
Message | A brief description of the event. | |
Severity | The severity of the event occurred. For description of the symbols, see Communicator Status Monitor. | |
Source | 0 | Communicator |
1 | High level network, EtherNet/IP | |
2 | Subnetwork, Serial RS-232/485 | |
Sub-source | The nodes connected to the subnetwork and the PLC connected to the high level network. If there is a problem with a node the node name is displayed in the Sub-source column. Example 9. Sub-source number If the node name is 5, number 5 is displayed in the Sub-source column. | |
To clear the current log, click Clear log.
