Connect to EtherCAT Network

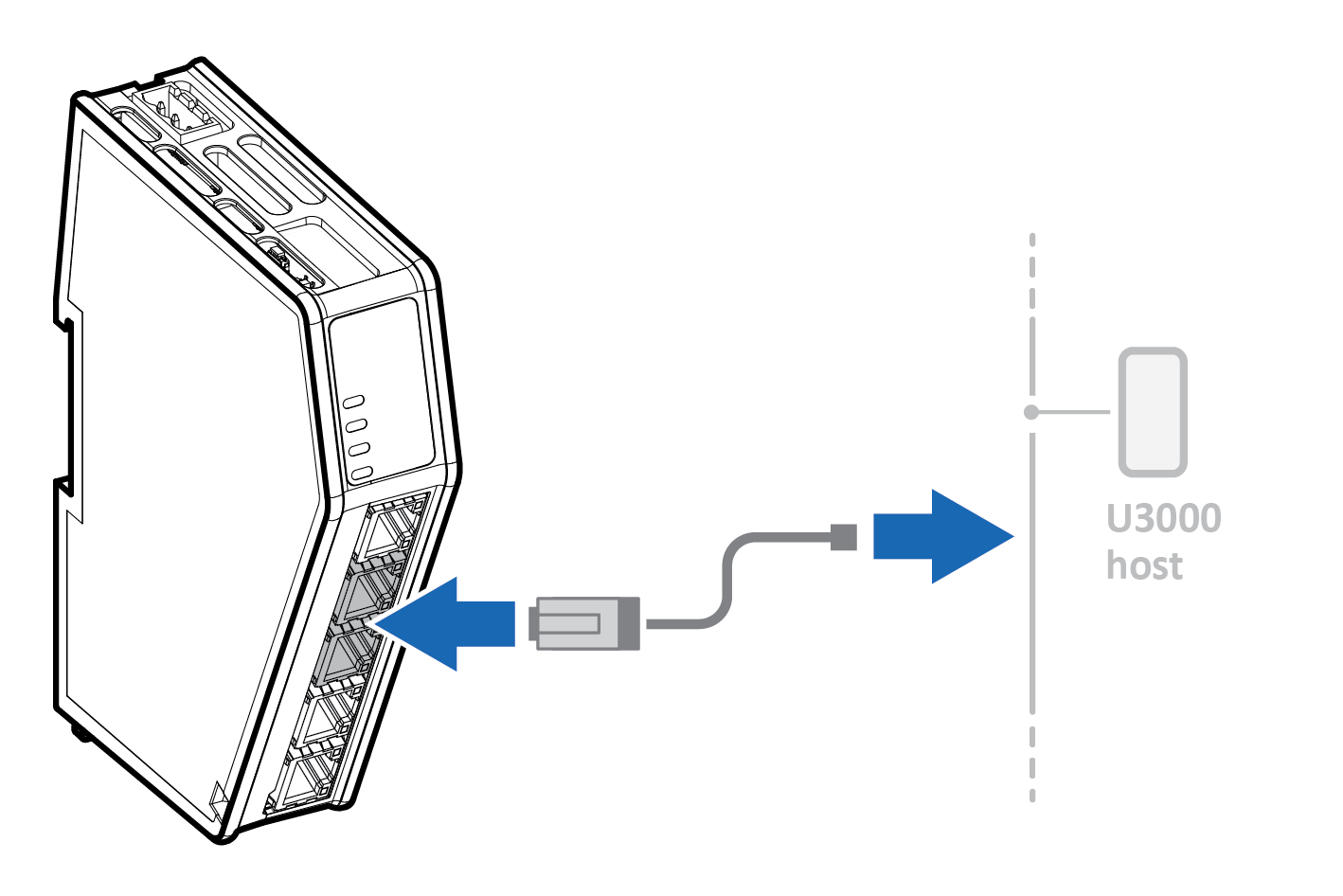

Figure 15. Connect to EtherCAT Network
 |
Connect the Communicator to your Serial RS-232/485 network.
EtherCAT Connector | Pin | Description |
|---|---|---|
| ||
1 | TD+ | |
2 | TD- | |
3 | RD+ | |
4 | Not used | |
5 | Not used | |
6 | RD- | |
7 | Not used | |
8 | Not used |
To Do Next
Connect the Communicator to the EtherNet/IP and to power.
Check LED status, refer to Communicator LED Indicators.
