Ethernet LED Indicators

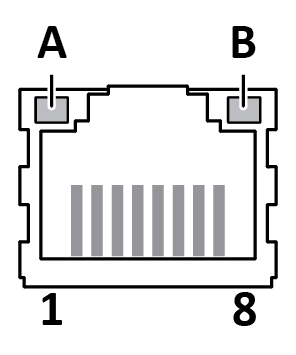

Figure 90. LED A. Activity LED B. Not used
 |
LED A | Function |
|---|---|
Off | No link (or no power) |
Green | Link (100 Mbit/s) established |
Green, flashing | Activity (100 Mbit/s) |
Yellow | Link (10 Mbit/s) established |
Yellow, flashing | Activity (10 Mbit/s) |
LED B | Function |
|---|---|
Off | Not used |
