Setup Serial Communication
Set up the communication between the Communicator and Barcode Scanner.
In the Serial RS232/485 page, configure the Communication settings.

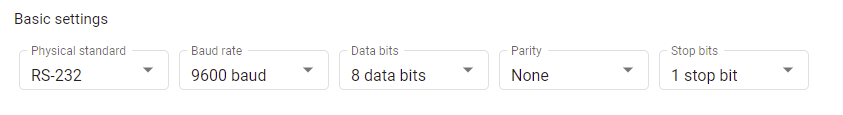

Figure 107. Serial RS232/485, Basic settings
 |
Table 13. Used the following settings:
Frame objects | Value |
|---|---|
Physical standard | RS-232 |
Baud rate | 9600 baud |
Data bits | 8 bits |
Parity | None |
Stop bits | 1 stop bit |
