Offline Option

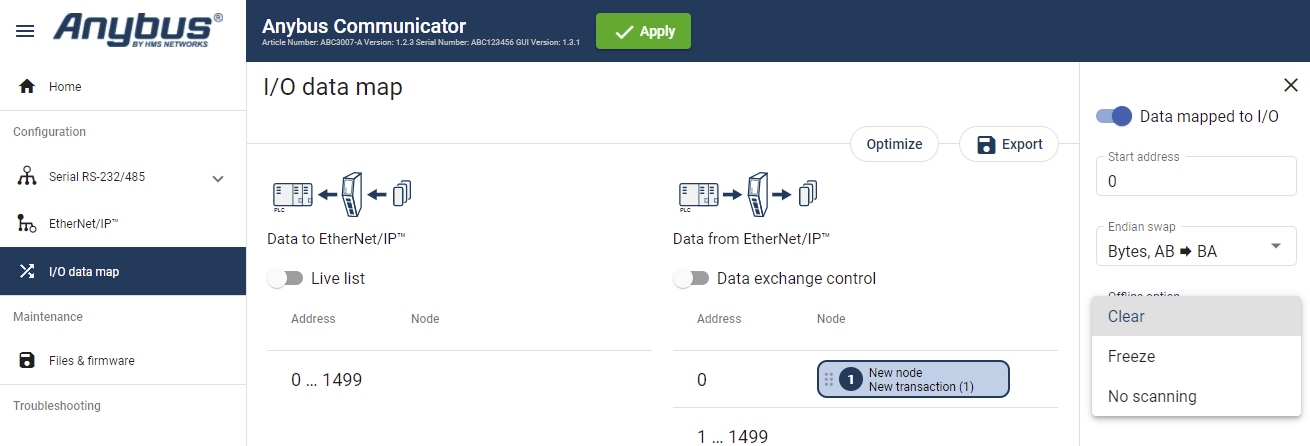

Figure 75. I/O data map page, Offline options
 |
Offline mode is used to define what data to send if the network connection or connection with a specific node is lost.
You must specify the offline mode to use for each transaction on the I/O data map.
Select one of the following :
Clear (Default): The data is cleared and the value 0 is sent.
Freeze: The Communicator holds the value until the connection is restored.
No scanning: Stop sending this transaction on the sub-network. This option is only valid for produce and request transactions.
