About the Use Case
The purpose of this use case is to explain how to use the Custom Produce/Consume serial protocol.

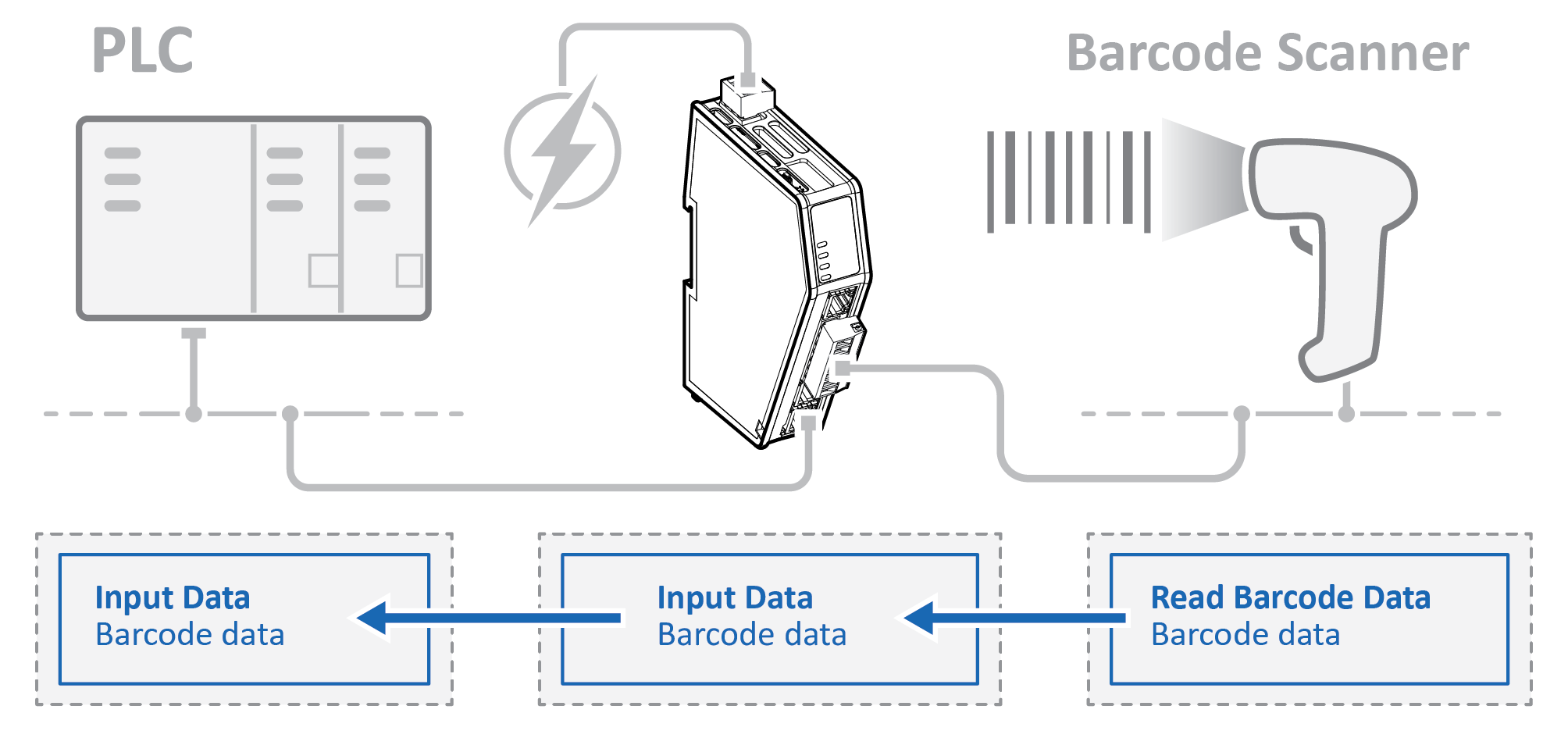

Figure 105. Barcode Scanner - Custom Produce/Consume Use Case
 |
In this use case we use the Communicator to enable data exchange between an Barcode Scanner and a PLC.
The use case describes how to map the communication in the Communicator.
The Barcode Scanner is connected to the serial subnetwork via a custom RS-232 protocol.
The PLC is connected to an EtherNet/IP network (high level network).
We use the Custom Produce/Consume serial protocol and create a customized transaction template.
