About the Use Case
The purpose of this use case is to explain how to use the Custom Request/Response serial protocol.

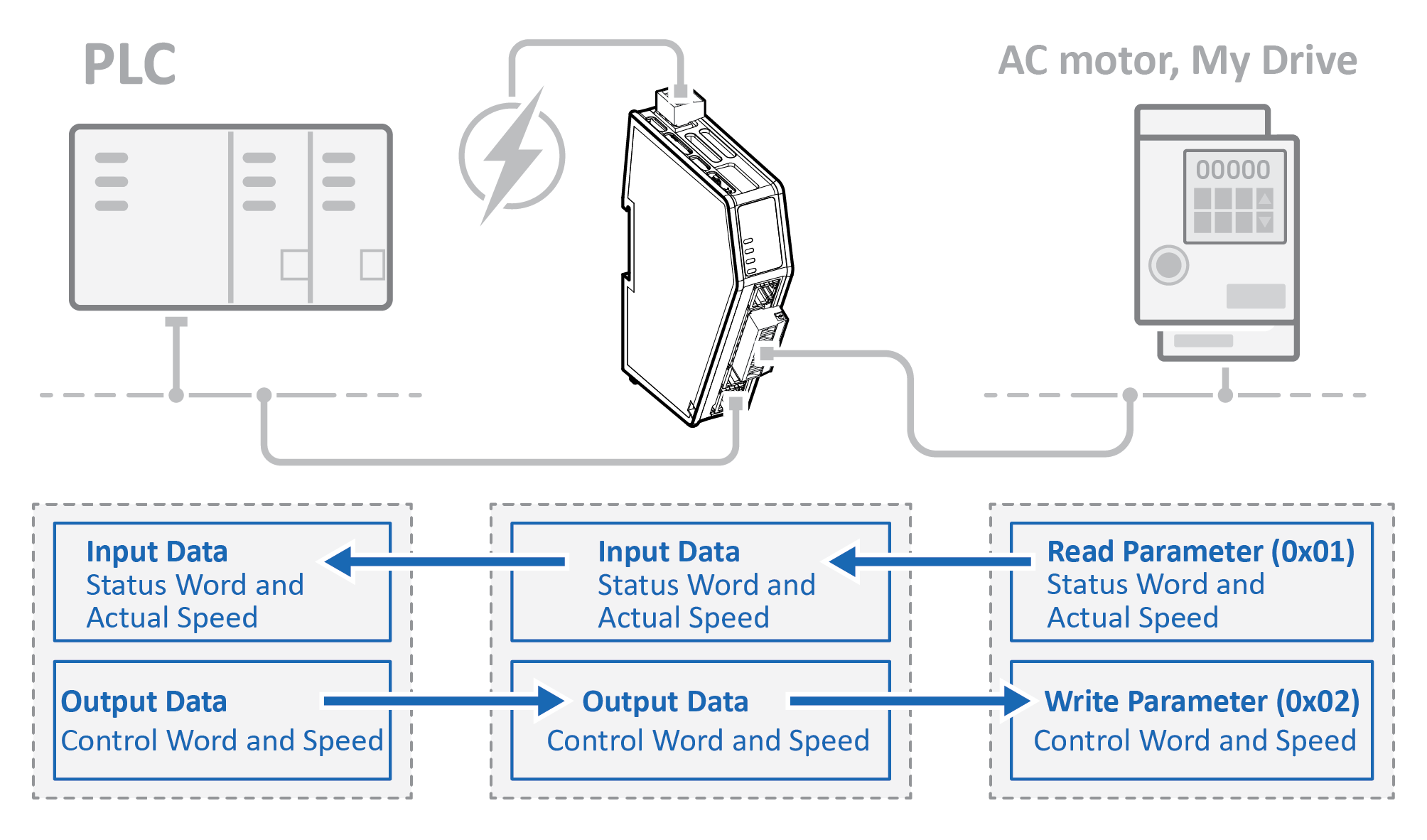

Figure 98. AC Motor Drive - Custom Request/Response Use Case
 |
In this use case we use the Communicator to enable data exchange between an AC motor, of the type My Drive, and a PLC.
The use case describes how to map the communication in the Communicator.
My Drive is connected to the serial subnetwork via a custom RS-485 protocol.
The PLC is connected to an EtherNet/IP network (high level network).
We use the Custom Request/Response serial protocol and create customized transaction template to map up:
Status word and actual speed from My Drive to the EtherNet/IP network.
Control word and speed from the EtherNet/IP network to My Drive.
