DIN Rail Demount
Before You Begin
Important
Be careful when removing the Communicator from the DIN-rail. If not removed properly, the DIN rail locking mechanism and the product cover can break.
Have a flat-blade screwdriver, size 5.5 mm, available.
Procedure
Remove the Communicator from the DIN Rail:
Insert the screwdriver into the Communicator DIN rail locking mechanism.
To unlock the Communicator DIN rail locking mechanism, turn the screwdriver clockwise.

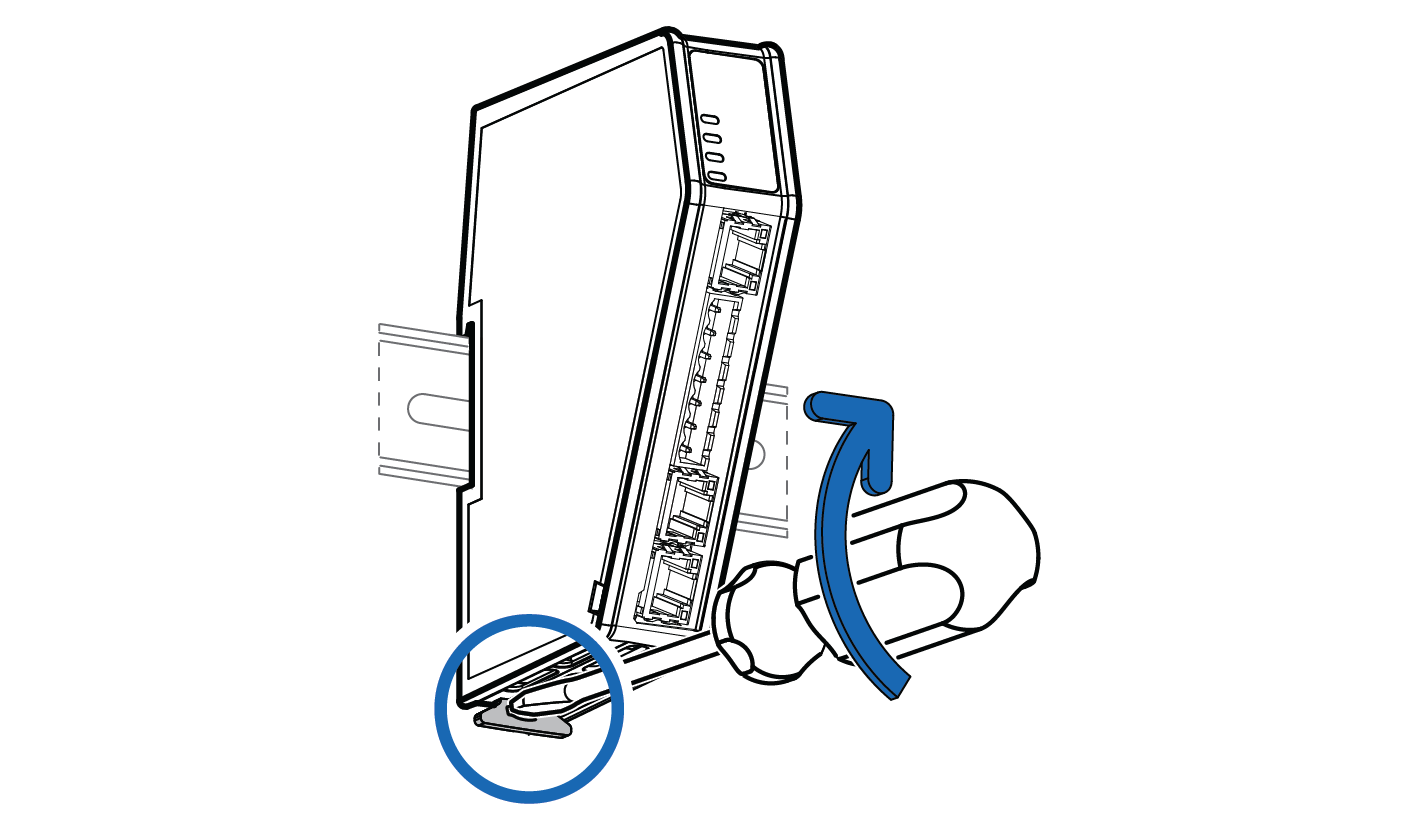

Figure 23. Unlock the Communicator
Hold the screwdriver in the DIN rail locking mechanism while you unhook the Communicator from the DIN rail.

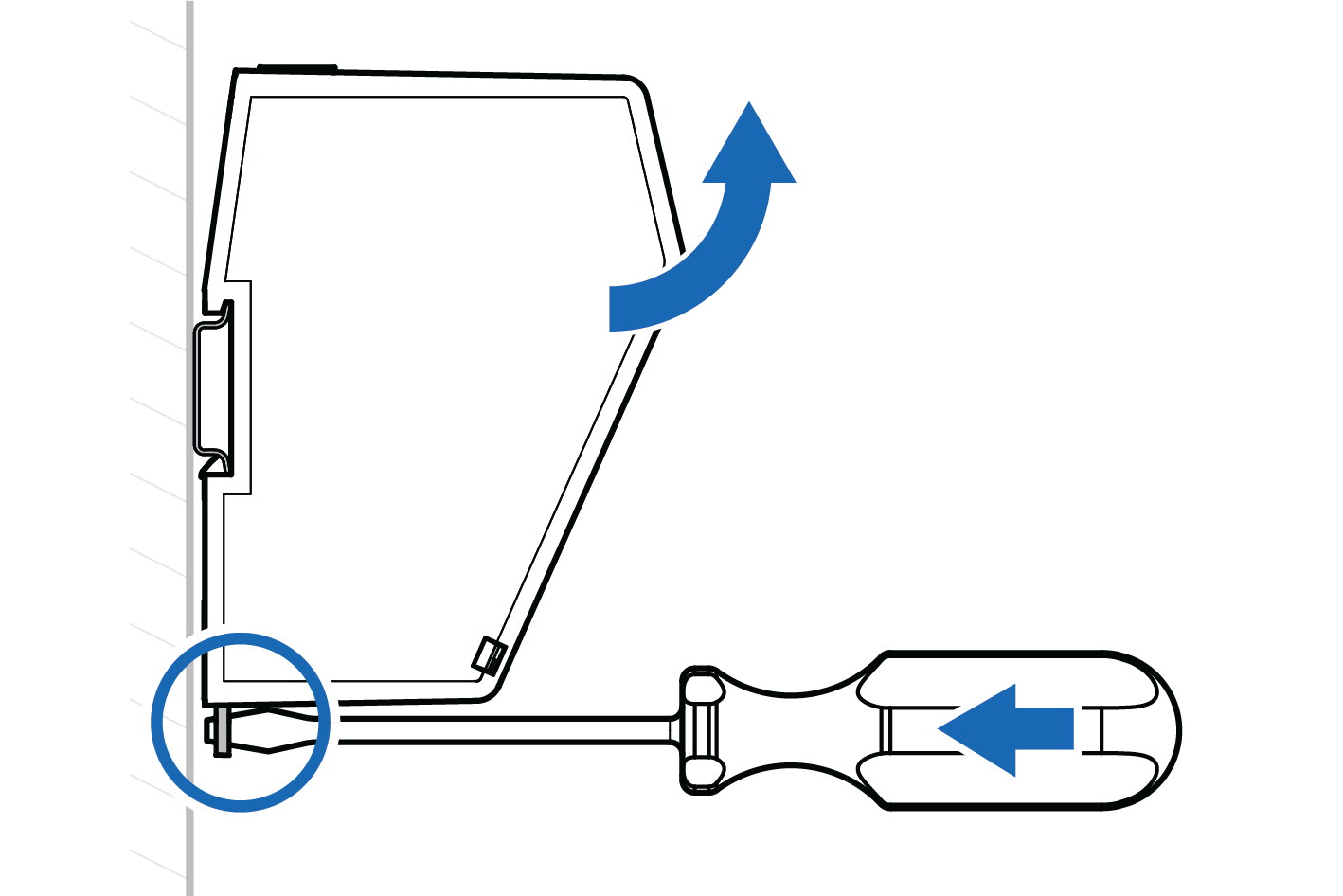

Figure 24. Unhook the Communicator
