How the Communication Works

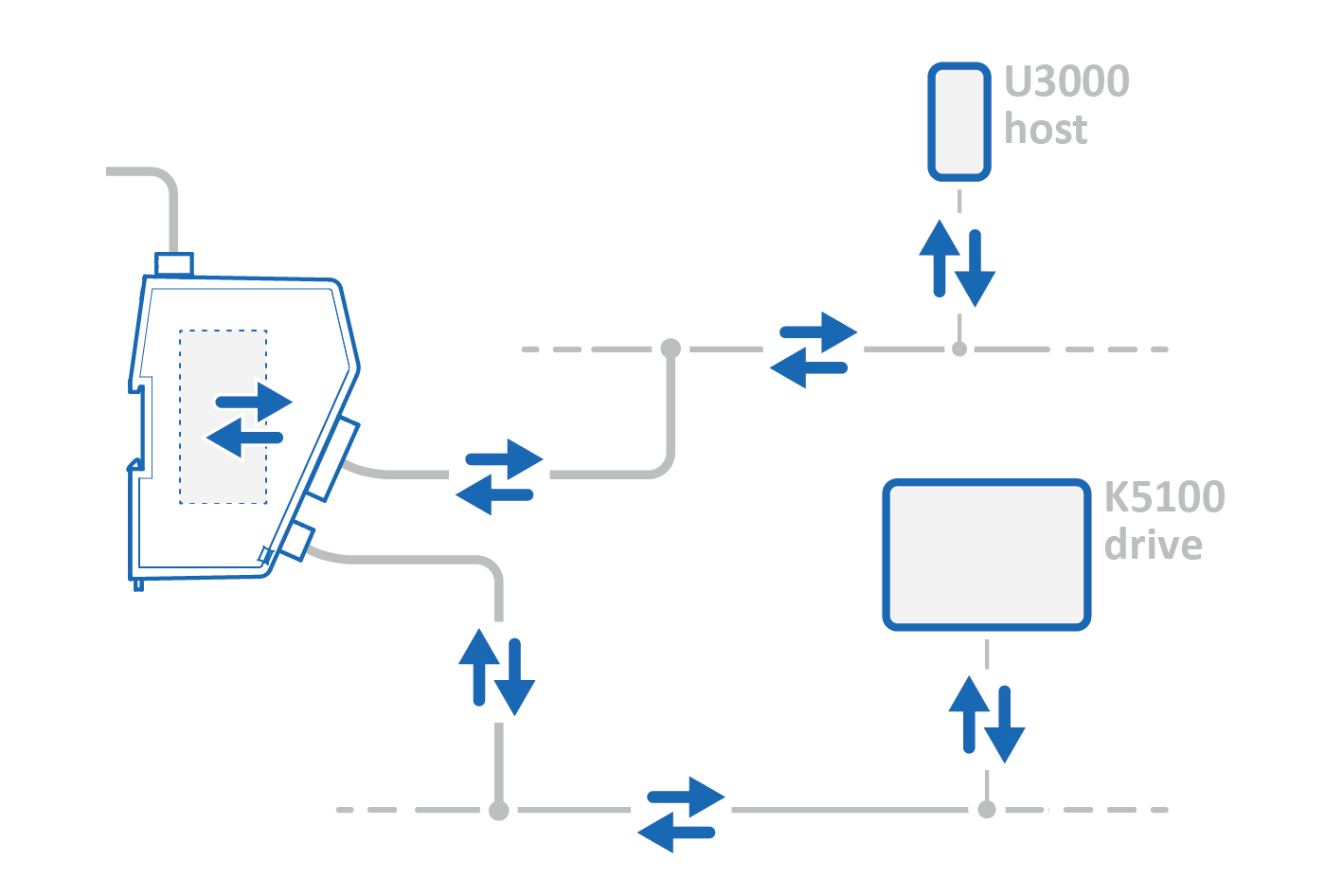

Figure 9. Process data traffic overview
 |
The Communicator enables communication, between a N/A and a U3000 host computer.
The Communicator main task is to translate between U3000 host commands on the serial network and explicit messages on the EtherNet/IP network.
This makes it possible to replace an N/A with a N/A, while keeping the Ultra 3000 host computer.
